HardwareLab

Kevin (formerly Bob)

Wire an LED, tell Kevin, and he writes and installs the skill himself

Full build guide

Pi 5 4 GB $130 + speakerphone; Gemini API key free tier

Prices: $130.00 at Adafruit (checked )

Kevin (formerly Bob)

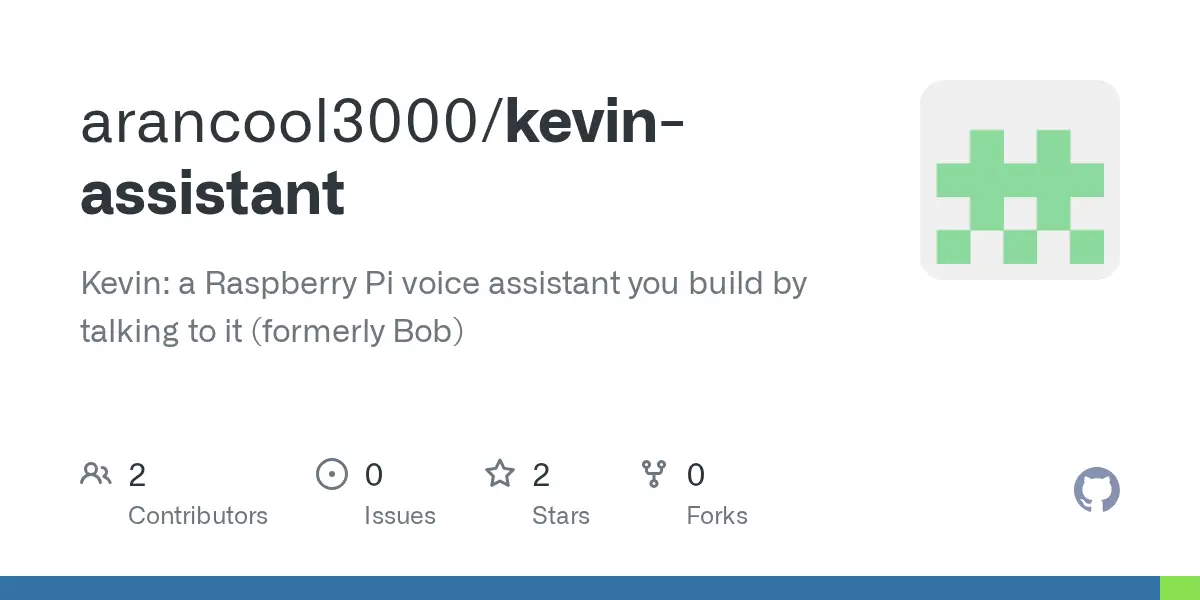

No photo in the source; GitHub repository card, served from HardwareLab.No demo video found in the repo, README, releases or a web search. The Reddit post may have media but couldn't be read (Reddit blocks our fetch).

By arancool3000 (GitHub repository owner)

GitHub stars
2 (GitHub)

Build sheet

Board
Raspberry Pi 5
Other parts
GPIO peripherals added by the user
AI model or service
Voice assistant LLM that generates and installs device skills from speech
Difficulty
Intermediate
Setup time
About 20–40 minutes: card write 10–20 min, first-boot install 10–20 min
Accounts needed
Gemini API key (Google AI Studio), Claude Pro/Max or ChatGPT Plus/Pro (optional)
License
MIT

Parts list

  • Raspberry Pi 5, 4 GB or 8 GB (recommended) (Pi 5 2 GB fine for Kevin alone; Pi 4 2 GB+ works; Pi 3B+/Zero 2 W not supported) [2]
  • Case with fan or heatsink (Pi 5) (The wake word listens all the time) [2]
  • Official power supply (27 W USB-C for Pi 5) [1]
  • microSD card (16 GB+, A1/A2 rated; plus a USB card reader if your PC has no slot) [1]
  • USB speakerphone (Easiest option (echo cancelling); or USB mic + speaker. Pi 5 has no headphone socket) [1]
  • Breadboard, jumpers, LEDs + 330 Ω resistors, buttons, relay module, DHT22/BME280 sensors, servos with own supply (For building skills) [optional] [1]
  • Arduino Nano, 16×2 I²C LCD, joystick module, optional buzzer (Bedside screen) [optional] [3]

Prices and notes: Parts and requirements

Overview

Open-sourced Pi 5 assistant that starts with no device skills; you wire hardware (e.g. LED on GPIO 17) and tell it what you connected—it writes the skill, reads it back, and installs only after verbal confirmation.

What it does

  • Starts with no device skills. You wire hardware and tell him, e.g. "I've connected an LED to GPIO 17. Make a skill that turns it on and off." He writes the skill, reads back what it will do, installs only after you say yes, tests it, and keeps it. [1]
  • Talks with Google's Gemini Live voice (eight voices, web search). [1]
  • Wake phrase "Hey Kevin" is recognised offline on the Pi by Vosk; nothing leaves the Pi until then. [1]
  • Named timers, wake-up alarms that ring until stopped, internet radio and music from a folder. [1]
  • Answers from free no-account services: rain next hour, UV, air quality, Wikipedia, definitions, currency, holidays, maths, units, recipes, the ISS, trivia. [1]
  • Phone remote (/app) and a night-time StandBy clock (/standby); settings page at kevin.local:8080. [1]
  • Updates himself from tagged GitHub releases daily and rolls back if a release fails to start. [1]

Things you can say or do

  • "Will it rain in the next hour?" [1]
  • "Remember the spare key is in the blue box" [1]
  • "Set a pasta timer for 10 minutes" · "Wake me up at 7:30" · "Snooze" [1]
  • "Play Radio Paradise" · "Next song" · "Quieter" [1]
  • "What's 15% of 240?" · "Define serendipity" [1]
  • "I've wired a button to GPIO 27, make a skill that tells me if it's pressed." [1]
  • "Roll back the desk LED skill." · "Switch off the desk LED skill." [1]
  • First, read-only: "Find what's on I2C", then "Install the example temperature skill" (BME280/BMP280) [1]

Use-case ideas

  • Starter wiring projects with ready phrases: LED on GPIO 17, button on GPIO 27, relay module on GPIO 22, servo on GPIO 18, BME280 temperature sensor. [2]
  • Bedside screen: an Arduino Nano + 16×2 LCD + joystick shows time, weather and timers, and its button talks to Kevin. [3]
  • Hand hard questions to your own Claude or ChatGPT subscription. [4]
  • Our suggestionA first electronics kit for a kid or classroom, where the assistant explains and builds each new part.

Parts and requirements

PartSpec / notesNeededPrice
Raspberry Pi 5, 4 GB or 8 GB (recommended) [2]Pi 5 2 GB fine for Kevin alone; Pi 4 2 GB+ works; Pi 3B+/Zero 2 W not supportedRequired$130.00Adafruit, checked
Case with fan or heatsink (Pi 5) [2]The wake word listens all the time · Price is the official Active Cooler, our pickRequiredOur suggestion$13.50Adafruit, checked
Official power supply (27 W USB-C for Pi 5) [1]Required$14.04Adafruit, checked
microSD card [1]16 GB+, A1/A2 rated; plus a USB card reader if your PC has no slotRequired
USB speakerphone [1]Easiest option (echo cancelling); or USB mic + speaker. Pi 5 has no headphone socketRequired
Breadboard, jumpers, LEDs + 330 Ω resistors, buttons, relay module, DHT22/BME280 sensors, servos with own supply [1]For building skillsOptional
Arduino Nano, 16×2 I²C LCD, joystick module, optional buzzer [3]Bedside screenOptional
  • RAM: Pi 5 4/8 GB recommended; 2 GB OK; Pi 4 2 GB+ works.
  • OS: Raspberry Pi OS Lite (64-bit)
  • Network: Ordinary home Wi-Fi (not hidden/enterprise) or Ethernet, with internet
  • Computer for setup: Windows or Mac for the setup app, or any computer for the manual install
  • Gemini API key (Google AI Studio): required, Free tier with usage limits; Google may use free-tier data [1]
  • Claude Pro/Max or ChatGPT Plus/Pro: optional, Paid plan [4]
  • Requirements source: [1]

How it works

Vosk listens offline for "Hey Kevin". Then audio streams to Gemini Live, which answers by voice and calls tools: built-ins (time, weather, timers, notes, volume, Pi status, build skills) or your own skills. A new skill is shown with its exact code, a diff and what it can reach on the settings page, and is installed only after a yes that the code enforces.

LayerComponentRuns on
Wake wordVosk, offline [1]Pi
Voice in/out + toolsGoogle Gemini Live API [1]Cloud
SkillsOne Python file each (gpiozero, smbus2, pyserial, urllib), run by a skill host as user bob-skill, 30 s per call [5]Pi
Hard questions (optional)Claude Code or Codex CLI, no tools, 2-minute limit [4]Pi → cloud
Settings + phone remoteWeb app on port 8080 [1]Pi

Setup effort

Skill level
Beginner
Time
About 20–40 minutes: card write 10–20 min, first-boot install 10–20 min

Low with the setup app: fill in Wi-Fi, passwords and the Gemini key, write the card, boot. Manual: one curl | sudo bash install over SSH. [1]

Limits and caveats

  • Needs internet and a Gemini key; conversations go to Google. On the free tier Google may use the data. [6]
  • Skills can't watch and speak by themselves ("tell me when the button is pressed" isn't possible) and can't install libraries. [5]
  • A skill's reach list is a report, not a sandbox; skills can use the network. [5]
  • Can't be interrupted while speaking. [7]
  • Setup apps aren't code-signed yet (SmartScreen / Gatekeeper warnings). [7]
  • Very new: 2 GitHub stars, v0.6.1, renamed from Bob in October 2026 (internals still say bob-assistant). [1]

Hardware

  • Raspberry Pi 5
  • GPIO peripherals added by the user

More Raspberry Pi builds

Like this build? Get the weekly builds

Get the best new AI hardware builds every Thursday. One email a week, free.

Built something? Submit a build

Credits and links

Sources

  1. github.com/arancool3000/kevin-assistant
  2. github.com/arancool3000/kevin-assistant/blob/main/docs/HARDWARE.md
  3. github.com/arancool3000/kevin-assistant/blob/main/examples/bedside-screen/README.md
  4. github.com/arancool3000/kevin-assistant/blob/main/docs/AI-ACCOUNTS.md
  5. github.com/arancool3000/kevin-assistant/blob/main/docs/SKILLS.md
  6. github.com/arancool3000/kevin-assistant/blob/main/docs/PRIVACY-SECURITY.md
  7. github.com/arancool3000/kevin-assistant/blob/main/docs/WINDOWS-SETUP.md
